Set the molding parameters and click MOLD. The state of the product molded will be shown.
Material used: DURACON M90S polyacetal resin from our company Molding machine: 75-ton, 26-mm screw. Cylinder temperature = 190°C. Mold temperature = 80°C. Screw rpm = 100 rpm

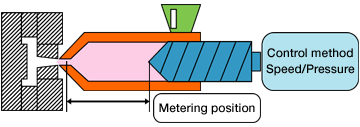

Molding Parameters(explanation) Cooling time sec Holding pressure time sec Holding pressure MPa Switchover position mm Metering position mm Injection rate mm/sec
Molding machine information Use these as reference for parameter setting Part weight gr Cushion size mm Metering time sec
